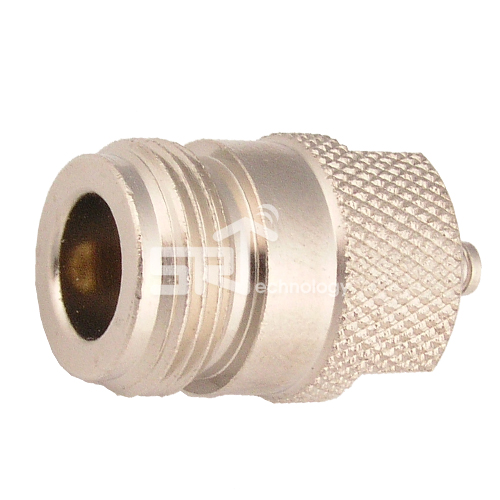

N Female(Jack) Straight for SF085, SR085

item code : A04-F1324-01
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 9 GHz
    Impedance 50 Ω
    Insulation Resistance 5,000 MΩ Min
    Interface MIL-C-39012
    Vibration MIL-STD-202
    Durability 500
    RoHS Compliance
    Shock MIL-STD-202
    V.S.W.R
    (Max)    		 1.30 : 1
    Contact Current DC 3.5A Max
    Voltage Rating 1000V rms
    Material Specification
    Item Specification
    Body Brass / Nickel plating
    Center Contact Beryllium / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel plating
    Cable Type SF085, SR085

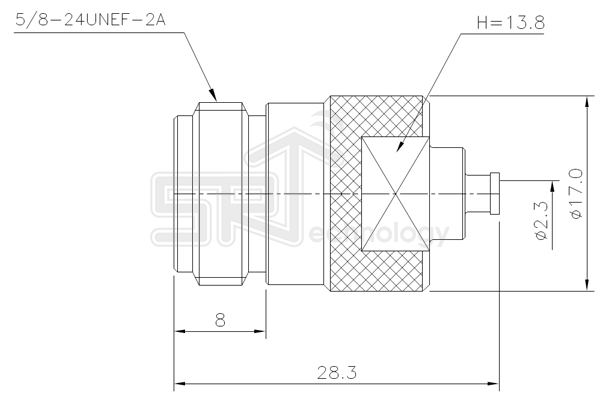

  • Drawing
