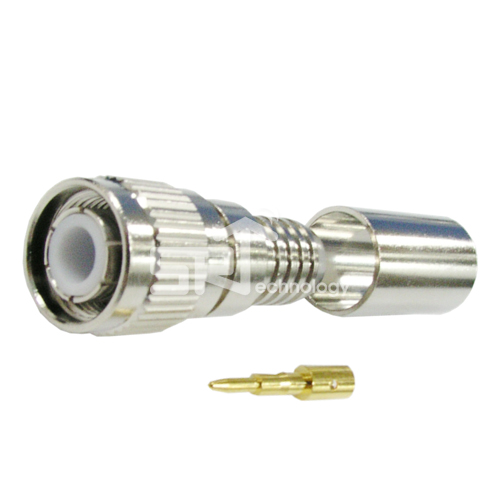

TNC (Male) ST RG8, RG213, RG214, LMR400

item code : A03-M1110-01
  • RG8, RG213, RG214 and LMR400 cables can be assembled.
  • Cable Assembly work with other connectors is welcomed.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 4 GHz
    Impedance 50 Ω
    Vibration MIL-STD-202
    Durability 500 Mating
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    Shock MIL-STD-202
    V.S.W.R
    (Max)    		 1.30 : 1
    Insertion Loss 0.1dB Maxat 1GHz
    Contact Res 5.0 mΩ
    Material Specification
    Item Specification
    Body Brass / Nickel plating
    Center Contact Brass / Gold plating
    Insulator PTFE
    Cable Type RG8, RG213, RG214, LMR400

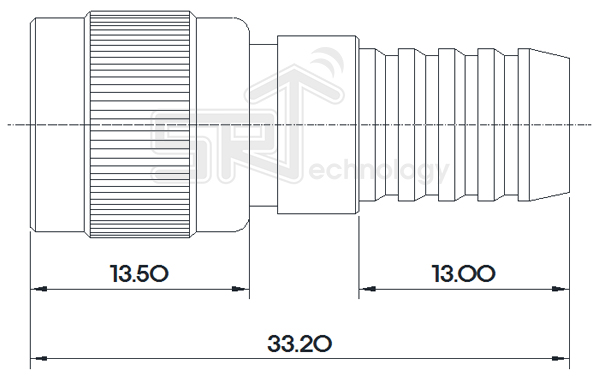

  • Drawing
  • Description
