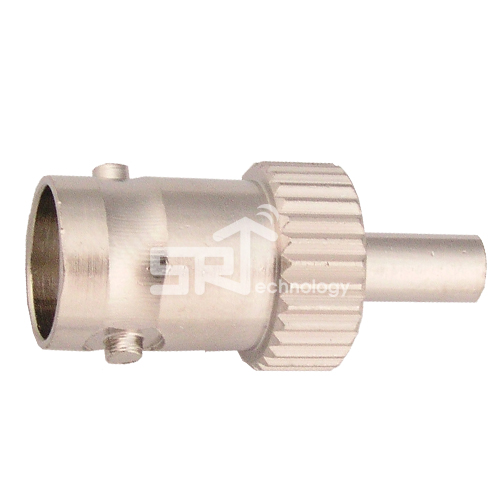

BNC (Female) ST RG 316

item code : A02-F1113-02
  • Cable Assembly with other connectors is welcomed.
  • Various BNC connectors for the cable type.
  • Price competitive model.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 3 GHz
    Impedance 50 Ω
    Durability 500 Mating
    Coupling Nut Torque 0.07 Nm (Min) ~ 0.25 Nm (Max)
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    Insertion Loss 0.3dB max at 3GHz
    Contact Current DC 3.5 A (Max)
    Voltage Rating 500 V rms
    Material Specification
    Item Specification
    Body Brass / Nickel plating
    Center Contact Be-Cu / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel plating
    Cable Type RG316

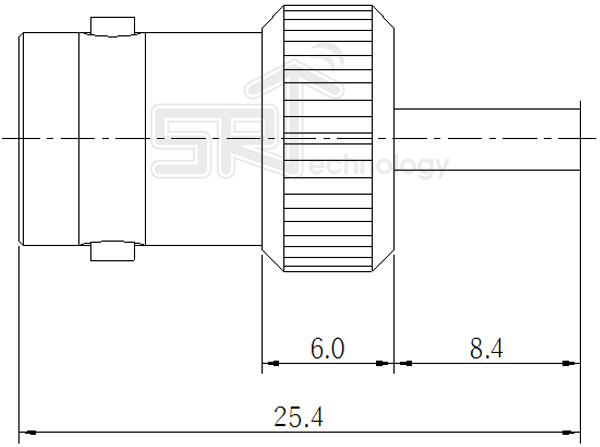

  • Drawing
  • Description
