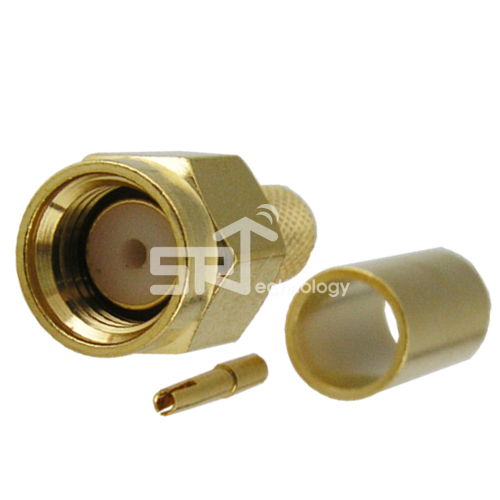

RP SMA (M/ B-M, P-F) LMR 200, RG58

item code : A01-M1101-11
  • PN : A01-M1101-11
  • Reverse Polality connector for RFID and Zigbee.
  • Cable Assembly work available with other connectors.
  • LMR200, LMR195 and RG58 cable will be assemblies.
  • MOQ : 100EA
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 1 GHz
    Impedance 50 Ω
    Insulation Resistance 5000 MΩ (Min)
    RF Leakage (Min) -60 dBm @2.0 ~ 3.0 GHz
    Interface MIL-C-39012
    Vibration MIL-STD-202
    Durability 500 Mating
    Coupling Nut Torque 12 Ncm – 170 Ncm
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    Shock MIL-STD-202
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Be-Cu / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel plating
    Cable Type RG58

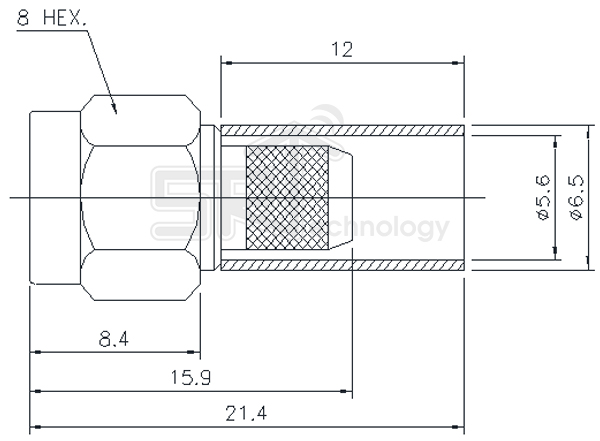

  • Drawing
  • Description
