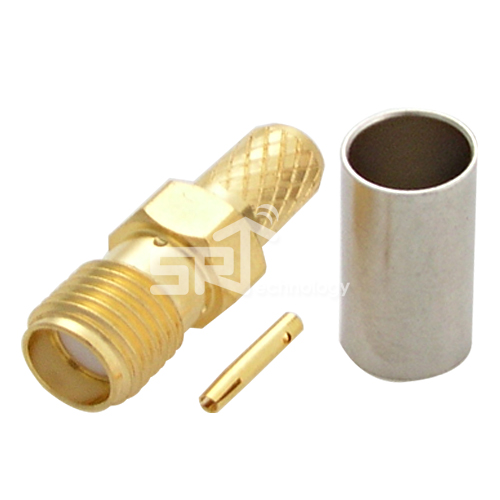

SMA (Female) ST RG58, RG223, RG400, LMR200

item code : A01-F1101-02
  • Cable Assembly work with other connectors available.
  • RG58, RG223, RG400 and LMR200 cable can be used.
  • MOQ : 100EA
  • 1 Week of Fast delivery.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 18 GHz
    Impedance 50 Ω
    Insulation Resistance 5000 MΩ (Min)
    RF Leakage (Min) -60 dBm @2.0 ~ 3.0 GHz
    Interface MIL-C-39012
    Vibration MIL-STD-202
    Durability 500 Mating
    Coupling Nut Torque 12 Ncm – 170 Ncm
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    Shock MIL-STD-202
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Be-Cu / Gold plating
    Insulator PTFE
    Cable Type RG58, RG223, RG400, LMR200

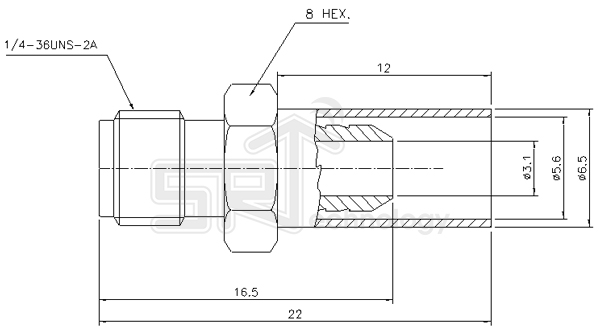

  • Drawing
  • Description
