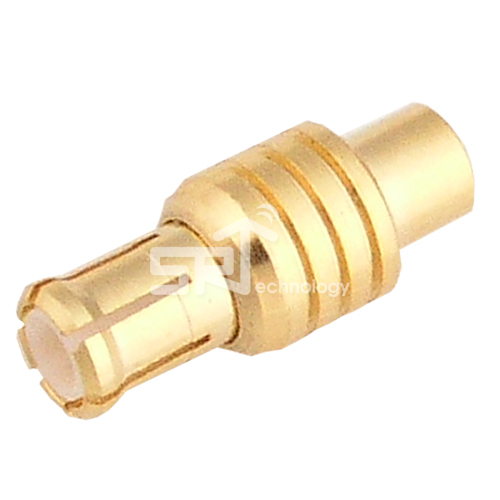

MCX Male(Plug) for SF085, SR085

item code : A06-M1324-01
  • Cable Assembly work with other connectors is available.
  • Cable bending work is available upon customer drawing.
  • Semiflex 085 and Semirigid 085 cable can be used.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 6 GHz
    Impedance 50Ω
    Insulation Resistance 1,000 MΩMin
    Vibration MIL-STD-202
    Durability 500
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    Shock MIL-STD-202
    V.S.W.R
    (Max)    		 1.30 : 1
    Insertion Loss 0.1dB Maxat 1GHz
    Contact Current Center contacts : 5.0 mΩOuter contacts : 1.0mΩ
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Brass / Gold plating
    Insulator PTFE
    Cable Type SF047, SR047

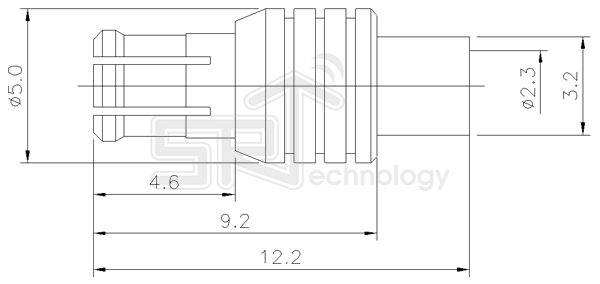

  • Drawing
  • Description
