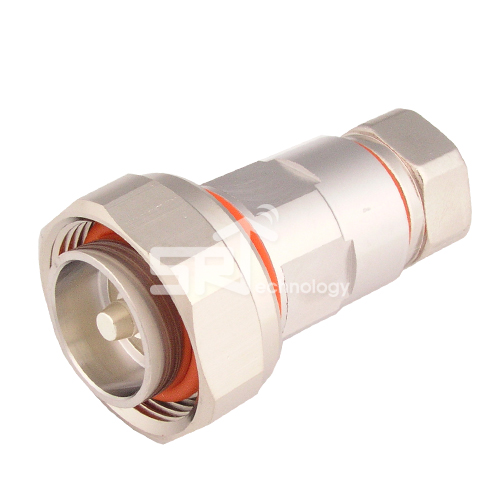

7/16 DIN Male(Plug) Straight Clamp for 1/2" Flexible

item code : A05-M1430-01
  • PIMD, -150dBc
    IP 68 Rating.
    All types of 1/2″ Flexible cable is assembled.
    Cable Assembly Manual available.
    Easy Maintenance.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 3 GHz
    Impedance 50Ω
    Insulation Resistance 10,000 MΩ Min
    RF Leakage (Min)
    Interface
    Vibration
    Durability 500
    Coupling Nut Torque
    Operating Temperature -30℃ ~ 60℃
    RoHS Compliance
    Shock
    V.S.W.R
    (Max)    		 1.20 : 1
    Insertion Loss 0.15dB
    Dielectric Withstanding Voltage
    Contact Current
    Voltage Rating 2.7 kV rms, 50Hz
    Contact Res
    Material Specification
    Item Specification
    Body Brass / Nickel plating
    Center Contact Brass / Silver plating
    Insulator PTFE
    Ferrule Brass / Nickel plating
    Cable Type 1/2" Flexible
