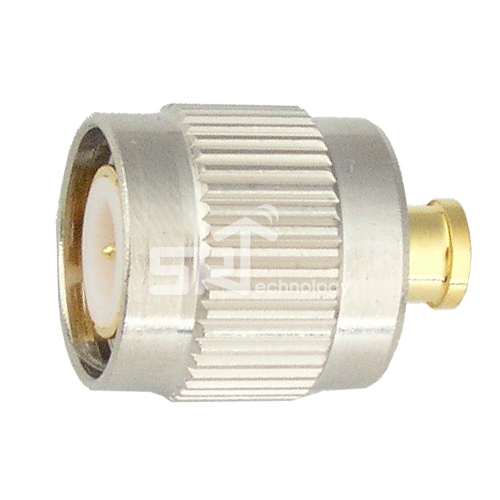

TNC Male Stragith crimp for SF141, SR141

item code : A03-M1325-01
  • Semiflex 141 and Semirigid 141 cable can be used.
  • Cable Bending work is welcomed.
  • Cable Assembly with other connectors is also welcomed.
  • 1 Week of Fast Delivery.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~11 GHz
    Impedance 50 Ω
    Insulation Resistance 5,000 MΩ min
    Vibration MIL-STD-202, Method 213
    Durability 500
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    V.S.W.R
    (Max)    		 1.50 : 1
    Insertion Loss 0.18dB Max at 9GHz
    Contact Current DC 3.5A Max
    Voltage Rating 250 V rms
    Material Specification
    Item Specification
    Body Brass / Nickel, Gold plating
    Center Contact Brass / Gold plating
    Insulator PTFE
    Cable Type SF141, SR141

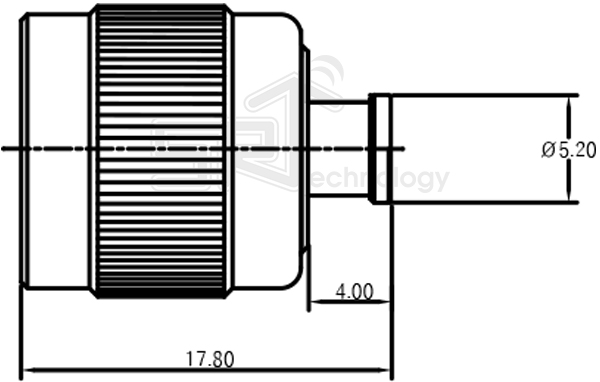

  • Drawing
  • Description
