TNC (Male) R.A. RG316, RG174

item code : A03-M1113-12
  • RG316 and RG174 cable can be assembled with.
  • Cable assembly work with other connectors is available.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 3 GHz
    Impedance 50 Ω
    Insulation Resistance 5000 MΩ (Min)
    Vibration MIL-STD-202, Method 213
    Durability 500 Mating
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    V.S.W.R
    (Max)    		 < 1.5 : 1
    Insertion Loss 0.18dB Max at 9GHz
    Contact Current DC 3.5 A (Max)
    Contact Res 2.0 mΩ
    Material Specification
    Item Specification
    Body Brass / Nickel plating
    Center Contact Brass / Gold plating
    Insulator PTFE
    Cable Type RG316(s)

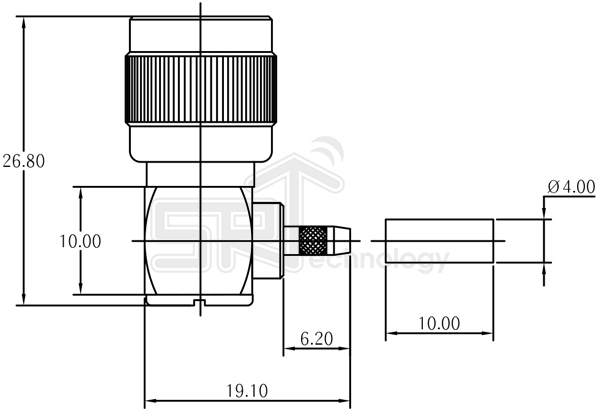

  • Drawing
  • Description
