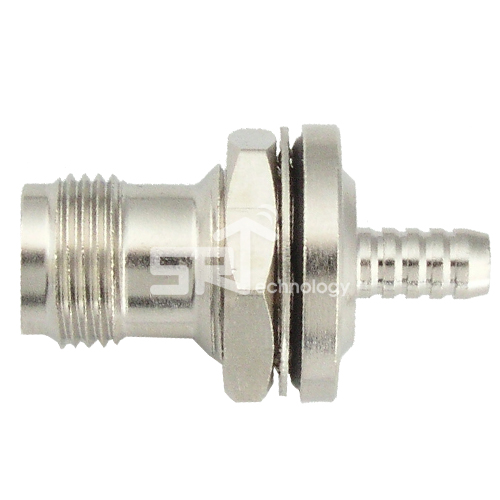

TNC (Female) ST B.H. RG58, RG223, RG400, LMR200

item code : A03-F1101-11
  • RG58, RG223, RG400 and LMR200 cables can be assembled.
  • Cable assembly work with other connectors is available.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 6 GHz
    Impedance 50 Ω
    Insulation Resistance 5000 MΩ (Min)
    Vibration MIL-STD-202, Method 213
    Durability 500 Mating
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    V.S.W.R
    (Max)    		 < 1.5 : 1
    Insertion Loss 0.18dB max at 9GHz
    Voltage Rating 250 V rms
    Contact Res 2.0 mΩ
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Be-Cu / Gold plating
    Insulator PTFE
    Cable Type RG58, RG223, RG400, LMR200

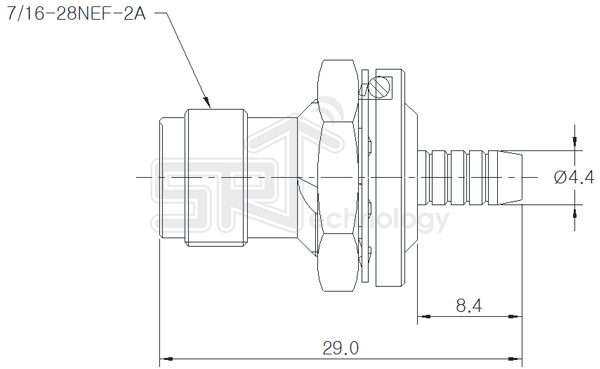

  • Drawing
  • Description
