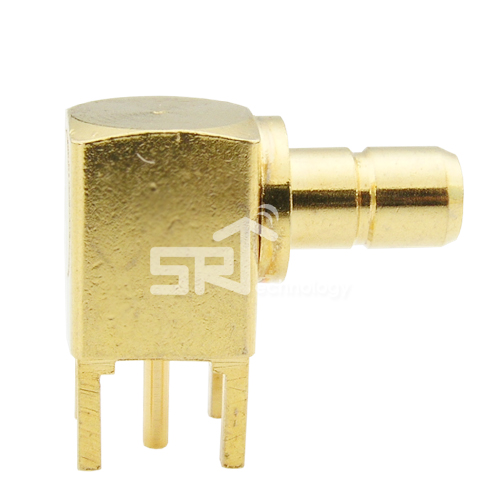

SMB Female(Jack) Right Angled PCB

item code : A08-M2003-21
  • Various SMB PCB Connectors are available.
  • Customerized SMB connector is welcomed.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 4 GHz
    Impedance 50Ω
    Durability 500
    Coupling Nut Torque Max. 63N
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    V.S.W.R
    (Max)    		 1.30 : 1
    Contact Current DC 1.5A max
    Voltage Rating 250V rms
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Brass / Gold plating
    Insulator PTFE

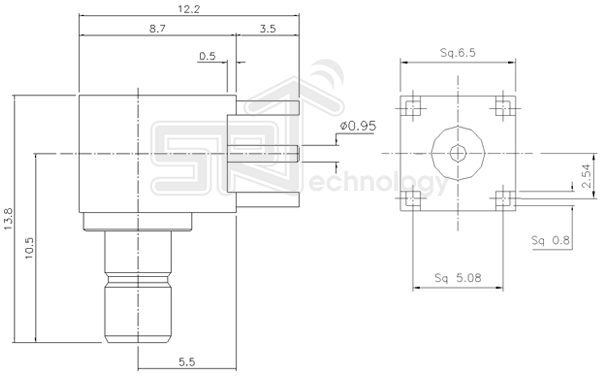

  • Drawing
