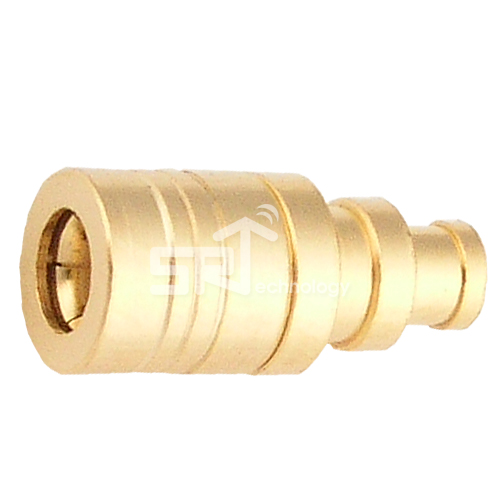

SMB Male(Plug) Straight for SF085 SR085

item code : A08-F1324-01
  • Cable Assembly work with other connectors is available.
  • Cable bending work is available upon customer drawing.
  • Semiflex 085 and Semirigid 085 cable can be used.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 4 GHz
    Impedance 50Ω
    Durability 500
    Coupling Nut Torque Max. 63N
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    V.S.W.R
    (Max)    		 1.30 : 1
    Contact Current DC 1.5A max
    Voltage Rating 250V rms
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact BeCu / Gold plating
    Insulator PTFE
    Cable Type SF085 SR085

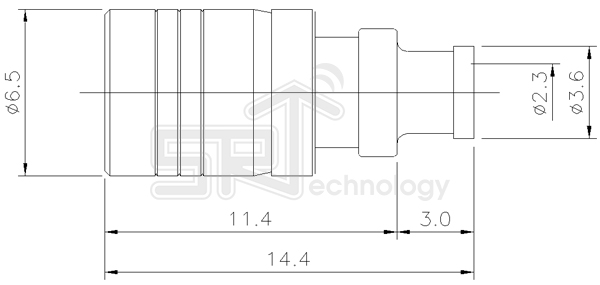

  • Drawing
