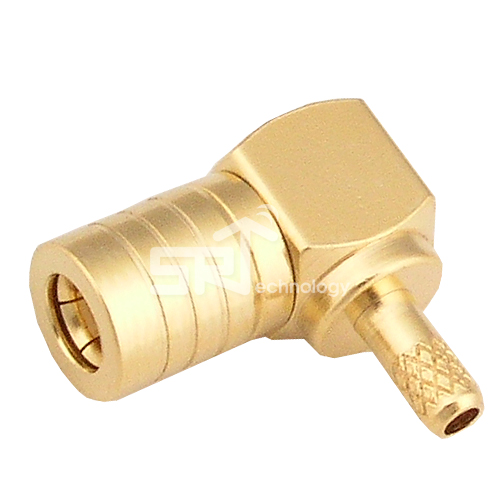

SMB Male(Plug) Right Angled Crimp for RG174, RG316

item code : A08-F1113-11
  • RG174 and RG316 cable can be assembled with.
  • Cable Assembly work with other connectors is available.
  • Reliable VSWR Specification.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 4 GHz
    Impedance 50Ω
    Durability 500
    Coupling Nut Torque Max. 63N
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    V.S.W.R
    (Max)    		 1.35 : 1
    Contact Current DC 1.5A max
    Voltage Rating 250V rms
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Be-Cu / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel Plating
    Cable Type RG174, RG316

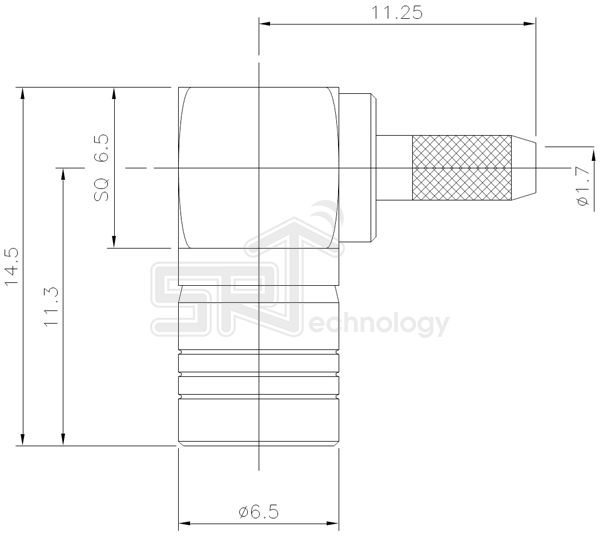

  • Drawing
  • Description
