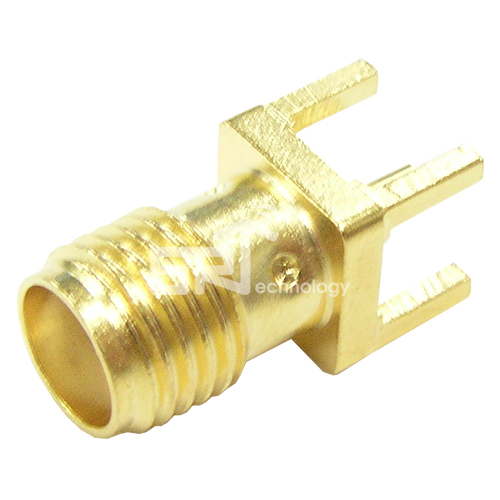

SMA (Female) PCB 13.5mm

item code : A01-F2003-55
  • Various type of SMA pcb connector available.
  • DC ~ 18GHz, Broad Application.
  • Stainless steel material available.
  • Customerized SMA development is welcomed.
  • The best selling product out of SMA.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 18 GHz
    Impedance 50 Ω
    Insulation Resistance 5000 MΩ (Min)
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    V.S.W.R
    (Max)    		 1.10 + 0.1 x F (GHz)
    Insertion Loss 0.05 √F(GHz)
    Dielectric Withstanding Voltage 750V min
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Beryllium Copper / Gold plating
    Insulator PTFE

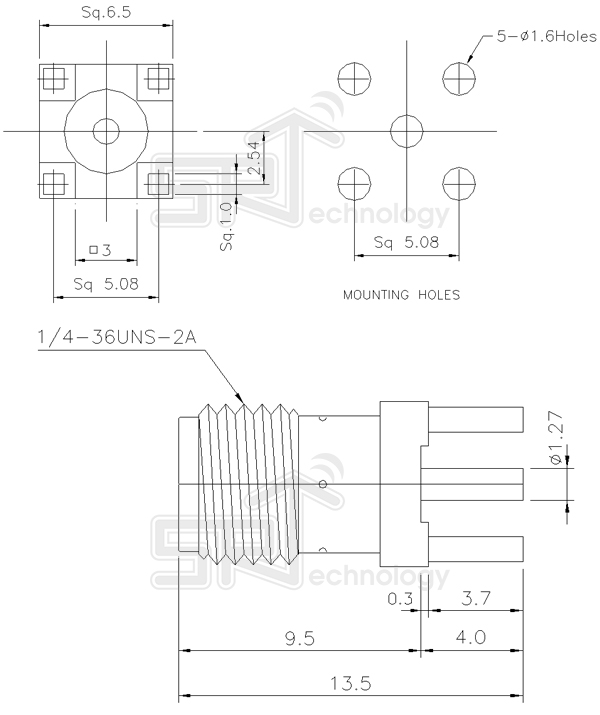

  • Drawing
  • Description
