  • SMA (Female) 4Hole, (0.0 * 2.2)

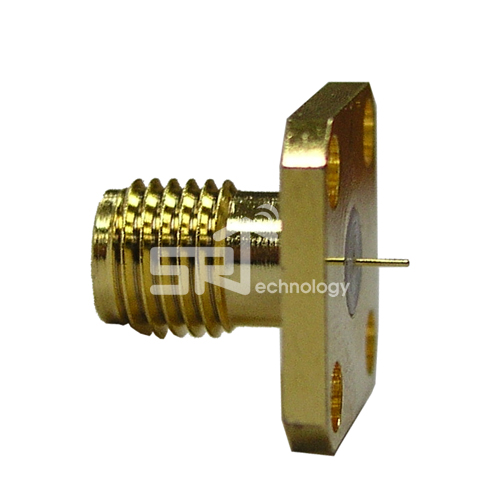

SMA (Female) 4Hole, (0.0 * 2.2)

item code : A01-F2002-07
  • DC ~ 18GHz, Broad application.
  • Stainless Steel Material available.
  • Customerized SMA development is welcomed.
  • Insulator & back center contact size can be adjusted.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 18 GHz
    Impedance 50 Ω
    Insulation Resistance 5000 MΩ (Min)
    RF Leakage (Min) -60 dBm @2.0 ~ 3.0 GHz
    Interface MIL-C-39012
    Durability 500 Mating
    Coupling Nut Torque 12 Ncm – 170 Ncm
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Be-Cu / Gold plating
    Insulator PTFE

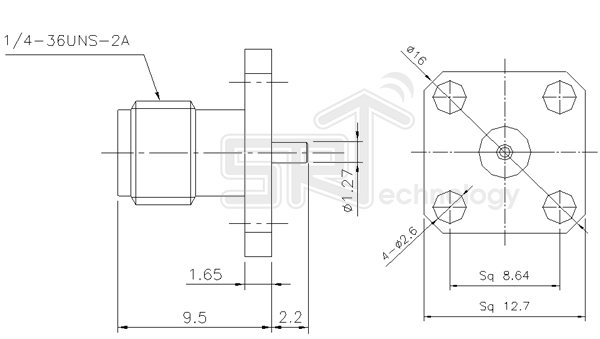

  • Drawing
  • Description
