  • SMA (Female) 4H, (5.0*2.0)

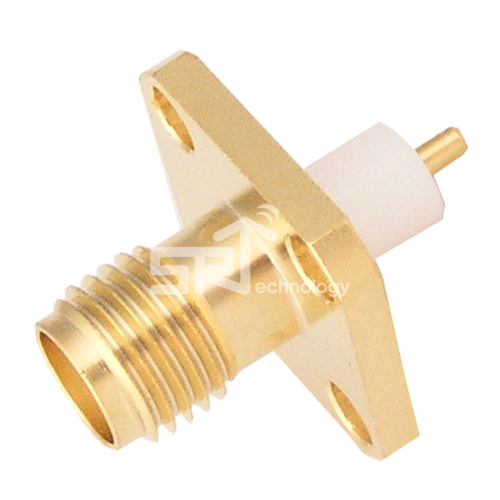

SMA (Female) 4H, (5.0*2.0)

item code : A01-F2002-02
  • DC ~ 18GHz, Broad Application.
  • Stainless steel material available.
  • Customerized SMA development is welcomed.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 18 GHz
    Impedance 50 Ω
    Insulation Resistance 5000 MΩ (Min)
    RF Leakage (Min) -60 dBm @2.0 ~ 3.0 GHz
    Interface MIL-C-39012
    Vibration MIL-STD-202
    Durability 500 Mating
    Coupling Nut Torque 12 Ncm – 170 Ncm
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    Shock MIL-STD-202
    V.S.W.R
    (Max)    		 1.20 : 1
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Be-Cu / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel plating
  • Drawing
  • Description
