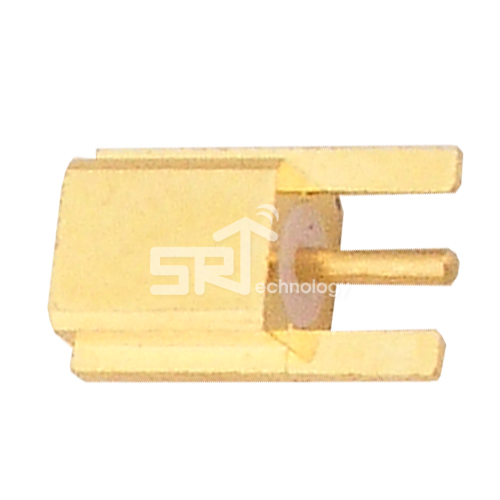

MMCX Female(Jack) End Launch

item code : A07-F2003-04
  • Various MMCX PCB Connectors are available.
  • Customerzied MMCX developing RFQ is welcomed.
  • Side Edge type connector.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 6 GHz
    Impedance 50Ω
    Insulation Resistance 1,000 MΩMin
    Vibration MIL-STD-202
    Durability 500
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    Shock MIL-STD-202
    Contact Current Center contacts : 5.0 mΩOuter contacts : 1.0mΩ
    Voltage Rating 170V rms
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Beryllium / Gold plating
    Insulator PTFE

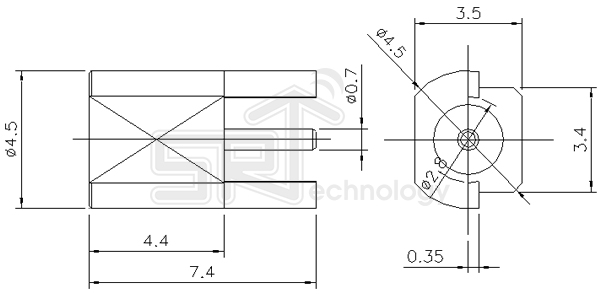

  • Drawing
  • Description
