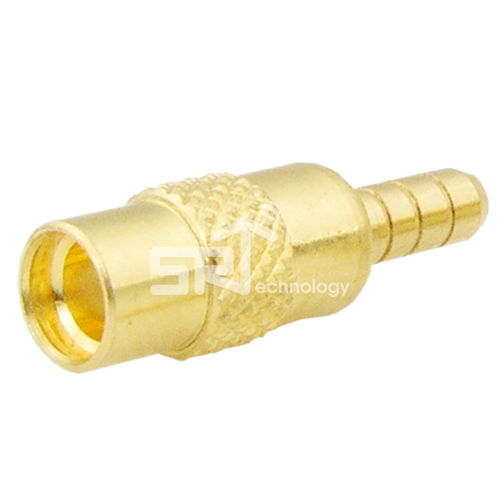

MMCX Female(Jack) Crimp for RG174, RG316

item code : A07-F1113-01
  • RG178 and RG316 cable can be assembled with.
  • Cable Assembly work with other connectors is available.
  • Cable Assembly manual can be supplied.
  • Reliable VSWR Specification.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 3 GHz
    Impedance 50Ω
    Insulation Resistance 1,000 MΩMin
    Vibration MIL-STD-202
    Durability 500
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    Shock MIL-STD-202
    Contact Current Center contacts : 5.0 mΩOuter contacts : 1.0mΩ
    Voltage Rating 170V rms
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Beryllium / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel plating
    Cable Type RG174, RG316

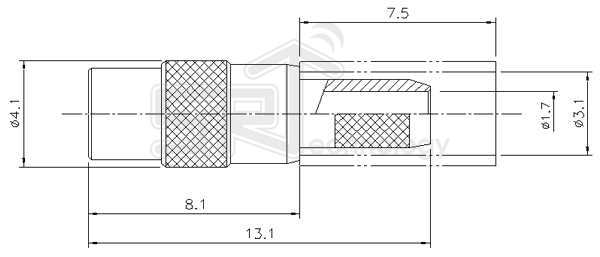

  • Drawing
  • Description
