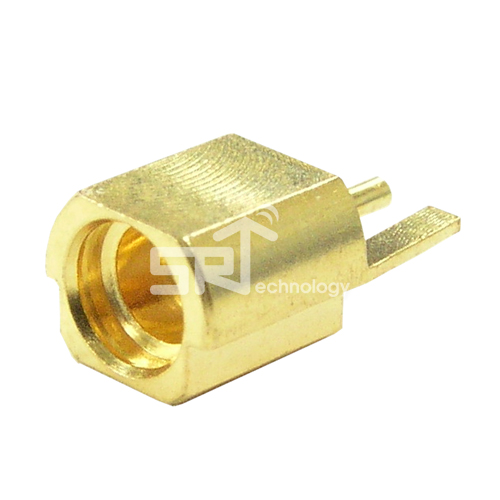

MCX Female(Jack) PCB, Side Edge

item code : A06-F2003-04
  • Various MCX PCB Connectors available.
  • Customerized MCX Connector is welcomed.
  • Side Edge type connector.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 6 GHz
    Impedance 50Ω
    Insulation Resistance 10,000 MΩ Min
    Vibration MIL-STD-202
    Durability 500
    Operating Temperature -65℃~+85℃
    RoHS Compliance
    Shock IMIL-STD-202
    V.S.W.R
    (Max)    		 1.30 : 1
    Insertion Loss 0.1dB Max at 1GHz
    Contact Current Center contacts : 5.0 mΩOuter contacts : 1.0mΩ
    Material Specification
    Item Specification
    Body Brass / Gold plating
    Center Contact Beryllium / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel plating

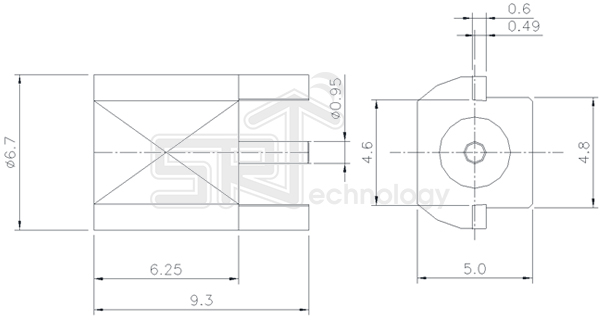

  • Drawing
  • Description
