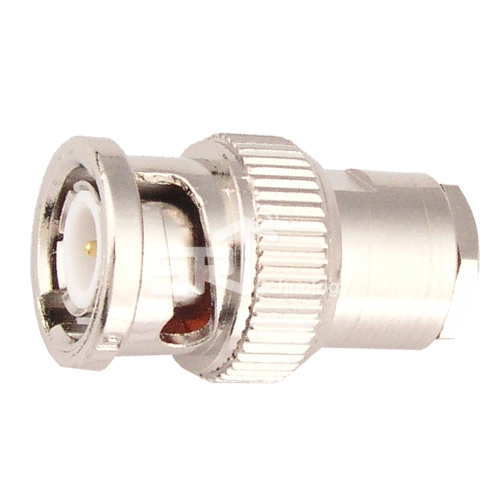

BNC (Male) ST RG58, RG223, RG400, LMR200, CLAMP

item code : A02-M1101-05
  • Cable Assembly work with other connectors is available.
  • Clamp type of cable assembly Method.
  • RG58, RG223, RG400 and LMR200 cables can be assembled with.
  • 1 Year of Guarantee.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 4 GHz
    Impedance 50 Ω
    Durability 500 Mating
    Coupling Nut Torque 0.07 Nm (Min) ~ 0.25 Nm (Max)
    Operating Temperature -65?C ~ +85?C
    RoHS Compliance
    Insertion Loss 0.3dB max at 3GHz
    Contact Current DC 3.5 A (Max)
    Voltage Rating 500 V rms
    Material Specification
    Item Specification
    Body Brass / Nickel plating
    Center Contact Male / Gold plating
    Insulator PTFE
    Ferrule Brass / Nickel plating
    Cable Type RG58, RG223, RG400, LMR200

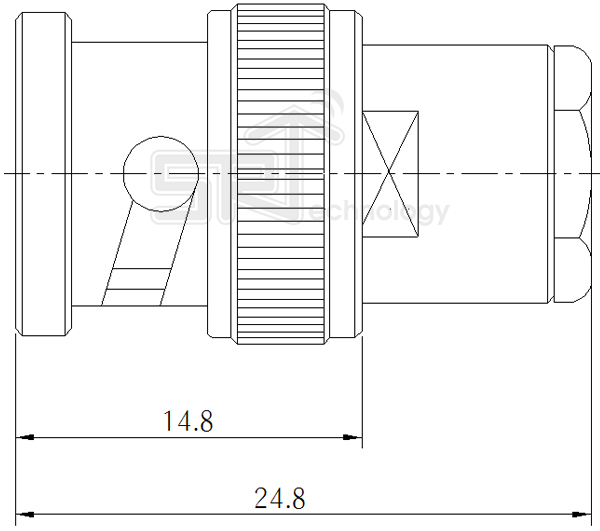

  • Drawing
  • Description
