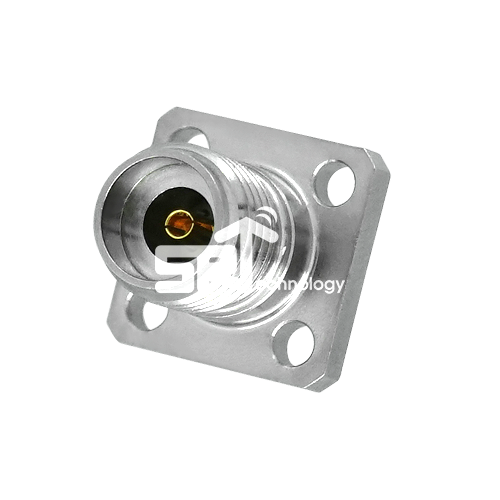

2.92mm Female(Jack) 4Hole, SQ 9.53mm

item code : A16-F2002-03
  • DC ~ 40GHz Broad Application.
  • Reliable VSWR 1.11:1 @40GHz, 1.08:1@ 18GHz.
  • Replace with SMA and 3.5MM connector.
  • Maximum performance with any RF Module and system.
  • Strict Quality control from production to shipment.
Specification Product Inquiry
  • Product information
    Electrical Specification
    Item Specification
    Frequency Range DC ~ 40 GHz
    Impedance 50Ω
    Insulation Resistance 5,000 MΩ Min
    RF Leakage (Min) -90dBm Min., 2~3GHz
    Vibration MIL-STD-202
    Operating Temperature -40?C ~ +100?C
    RoHS Compliance
    Shock MIL-STD-202
    V.S.W.R
    (Max)    		 1.20 : 1
    Material Specification
    Item Specification
    Body Stainless Steel / Passivated
    Center Contact Be-Cu / Gold plating
    Insulator Special Dielectric
  • Drawing
  • Description
